Profile


“Alaa Al-Jazeera Co.,” “CE” certified and an ISO 9001:2000 accredited company was established in the year of 1996. Since then company has been evolved a prominent elevator manufacturer in Kuwait.

Our factory is well equipped with the latest state-of-the-art machineries and very ably supported with the hi-tech infrastructure. The factory is now actively involved in Manufacturing, Installation and Maintenance of all types of Elevators for high-rise buildings, shopping centers, villas and commercial buildings. Company’s factories are situated at Sabhan Industrial Area, Kuwait and our company newly build factory with latest cutting-edge technology machines in Saudi Arabia at 2nd Industrial city Makah Street, Cross no. 150, Dammam. Our company has showrooms in all over GCC such as Kuwait, Saudi Arabia, Bahrain, Oman and UAE.

The production unit in Kuwait and Saudi Arabia are well equipped with several CNC machines such as CNC Laser cutting Machines, CNC Punching Machines, CNC Machining center by CINCINNATI MILACRON and other CNC press brakes and Cutting machines. These machines have been fitted with CAM Profiling Softwares such as Jetcam and Fastcam, which makes it more flexible and operator friendly so as to easily design.

The company has a workforce of around 250 employees, which consist of experienced engineers, skilled technicians and CNC operators. The company’s production rate is 1200 complete unit elevator cabins and its accessories per year. The company also has its own Elevator controller assembling section, where we assemble varies types of controllers such as MRL, VVVF, two speed and hydraulic controllers.

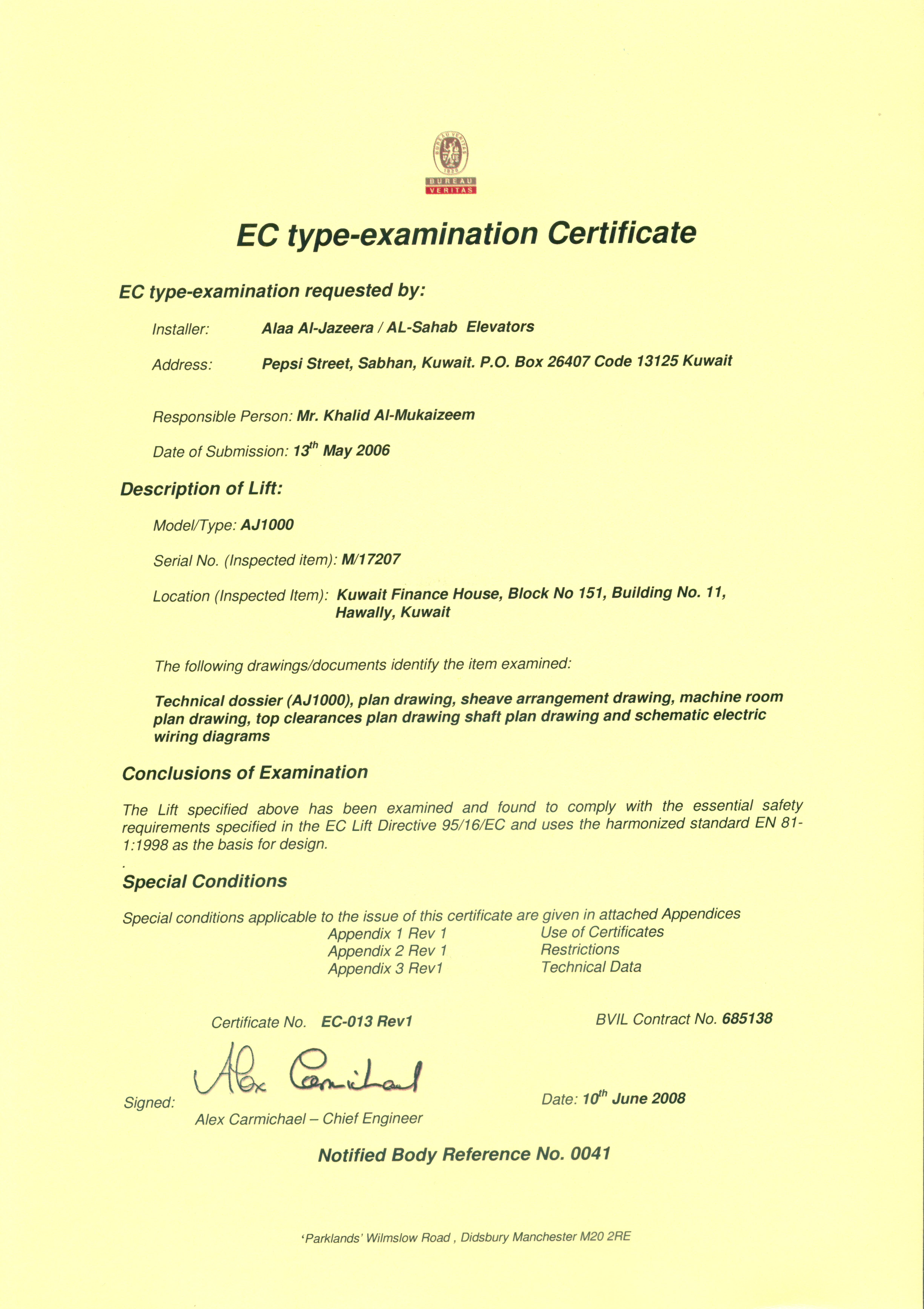

The company was able to achieve “CE” certification and enjoyed the privilege to become first elevator manufacturing company to get “CE” in the middle east.

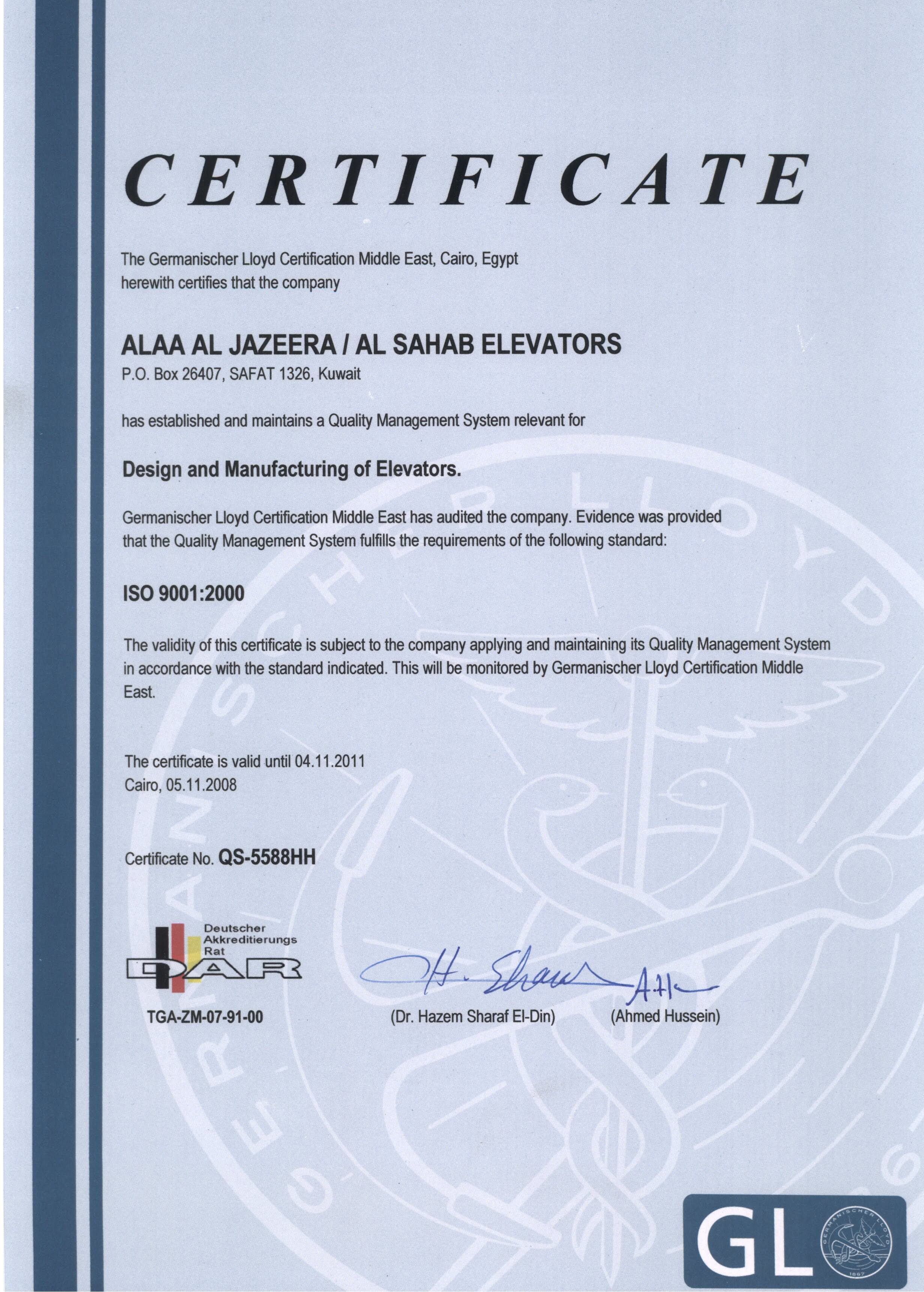

Certification




Products


We are the sole agent for Branded Elevator Machines from Italy and Germany. The remaining components are being imported from Europe. We are specialized in installation of following types of Elevators.

1.Traction Elevators

(i)Two speed:

Elevator motor has two windings:
 (i) High speed and (ii) Slow speed.
Elevator starts at High speed and will be traveling in the high speed. Before landing Elevator will go to slow speed and then it will stop.

Disadvantages of two speed :

  • Starting and stopping jerk
  • High Starting current
  • High energy consumption
  • Wear on brake pads
  • Un-leveling car and landing sills
  • Head generation.
  • (ii) V.V.V.F. (Variable Voltage and Variable Frequency):

    Elevator motor has only one winding and will be driven by Variable Frequency Drives. With the help of the Drives smooth start and smooth stop will be achieved. In two speed, total voltage 415 V AC and frequency 50 HZ are directly fed in to the motor. But in VVVF drives the voltage is fed from 0 V AC to 415 V AC and Frequency is fed from 0 Hz to 50 Hz gradually with the help of Drives, so that smooth starting and stopping are being achieved.

    Salient features:

  • Energy Conservation
  • Provides zero-speed brake stops, which will reduce wear on the elevator machine and brake.
  • No jerks at start and stop.
  • Leveling Accuracy: This could be as little as 1-2 mm leveling accuracy.
  • Speed Feedback: Speed position and position feedback to achieve good speed control, good riding comfort and good leveling accuracy.
  • Heat generated in the motor will be reduced and the life of the motor will be increased.
  • 2. Machine Room Less:

    By installing Machine room less elevator, we can eliminate the usage of separate machine room in the building top and the machine will be installed in the shaft itself. The MRL elevator utilizes a gearless traction type machine, which results in superior performance and ride quality. MRL’s can also operate at faster speeds thus increasing the perception of quality. Gearless machines can also be put in machine room installations too

    Salient features:

  • Elimination of machine room
  • Compact design
  • Energy Conservation compare to geared machines
  • Provides zero-speed brake stops, which will reduce wear on the elevator machine and brake.
  • No jerks at start and stop.
  • Leveling Accuracy: This could be as little as 1-2 mm leveling accuracy.
  • Speed Feedback: Speed position and position feedback to achieve good speed control, good riding comfort and good leveling accuracy.
  • Heat generated in the motor will be reduced and the life of the motor will be increased.
  • We have newly launched SICOR MRL PACKAGE with serial communication controller with Glass touch COP and LOP with finger access and card access.

    New controller features are as follows :

  • COP and LOP with advanced touch buttons.
  • Simple 2 wires CAN interface plug and play modules with no more wiring complexity; Connection wires will be provided as finished product.
  • Car call booking allowed only after valid finger print is detected (optional feature)
  • Save electricity and reduce elevator maintenance by allowing limited access to your groups by RFID(Radio-Frequency Identification)card access. (optional feature)
  • As many 256 finger prints can be stored.
  • Easy finger print storing procedure with voice guidance.
  • Fast finger print validation within 0.7 sec. voice announcement if not valid.
  • Call booking allowed only after swiping the card if it is programmed.
  • Voice announcement incase failed to swipe the RFID (Radio-Frequency Identification)
  • Touch glass panel, looks elegant, backlight glows bright, prevents stains, rust or scratches and is easy to maintain.
  • Wiring contains just 4 wires which render it easy for installation and servicing.
  • COP can be programmed ALPHA-NUMERICAL double digit display (GF, 1M, MF, 2F, 02 etc)
  • Supports Duplex, Triplex and Quadraplex upto 32 floors.
  • Integrated with Panel Guard to protect the system from phase loop and voltage fluctuations.
  • Voltage detection : if there is high or low voltage fluctuation, the panel will not get switched on at all.
  • Fireman and overload detection equipped with controller.
  • Voice annunciator with music facility.
  • Single magnet and door zone per floor for any number of floors.
  • Regulated 24 volt 4 channel DC output for field and internal wiring.
  • Electrical noise filter is integrated.
  • Travelling cable just 12 core and 4 core enough (right now we supply 48 wires)
  • No trucking required (installation time for trucking is reduced)
  • Installation time reduced due to pre-wired plug and play stuffs supplied with controller.
  • Advanced features :

  • Milky lock (not password lock) ; the same electronic tool is needed if we need to unlock the lift. Even we/board manufacture cannot unlock the lift.
  • Optional features :

  • ERD integrated with controller(with history display option) – no separate controller required
  • Finger access
  • RFID card access
  • 3. Hydraulic Passenger:

    Hydraulic units are being imported from “OMAR” Italy and BUCHER VALES from SWISS. By installing Hydraulic passenger elevator, we can eliminate the usage of separate machine room in the building top. These hydraulic units can be installed our convenient location in the ground floor itself.

    4. Hydraulic Platform:

    Complete packages are being imported from EROPE and Capacity up to 10000 kg, which will be useful for factory and go down usages.

    5. Dumb Waiters:

    These Dumb waiters are being installed to transport food and other items in different levels.

    6. Escalators:

    These Escalators are being installed in shopping complex in different levels.

    7. Travellators:

    These movable walks are being installed in shopping complex.

    8. Emergency rescue system for elevators.

  • In case of a mains failure, the lift stopped between two floors, Emergency rescue system will take care. It will drive the lift to nearest floor level and the automatic door will be opened and passengers will be evacuated safely.
  • Can be installed in all two speed, VVVF controlled and Hydraulic systems.
  • Powered by 5 batteries, which need no maintenance. Thanks to Smart Battery Charge System, which helps batteries to work for longer.
  • Softwares


    Elevator Designing Software:

    Our Elevator units are being designed by a special designer software “LIFT designer 4.0” according to European standard EN: 81. This software also makes selections of Elevator components according to Specified Load, Speed and Height of the shaft.

    Salient features of “LIFT designer 4.0” software

  • It creates two and three dimensional drawings
  • EN:81 Calculations
  • Customizing options
  • Selection of components such as Suspension ropes, Guide rails etc.
  • Traffic Analysis Software:

    For high-rise and commercial buildings, selection of Elevators are being done by Traffic analysis and simulation software “ELEVATE”. This software is used to select the number, size and speed of elevators for all types of buildings. Analysis several situations such as Lunch peak at office Building, rush hours etc.

    Salient features of “ELEVATE” software:

  • Dynamic simulation incorporating a graphical display of elevators responding to passenger calls.
  • Kinematics calculations are applied to generate accurate elevator speed profiles.
  • ELEVATE gives simulation results in the form of graphs for the following aspects.
  • (i) Average Waiting Time and Time to Destination
    (ii) Passenger Waiting Time Results.
    (iii) Passenger Transit Time Results.
    (iv) Time to Destination.
    (v) Passenger Transfer by Floor.
    (vi) Queue Length.
    (vii) Car Loading on Departure from Home Floor.
    (viii) Car Loading on Arrival at Home Floor.
    (ix) Dispatch Interval from Home floor.
